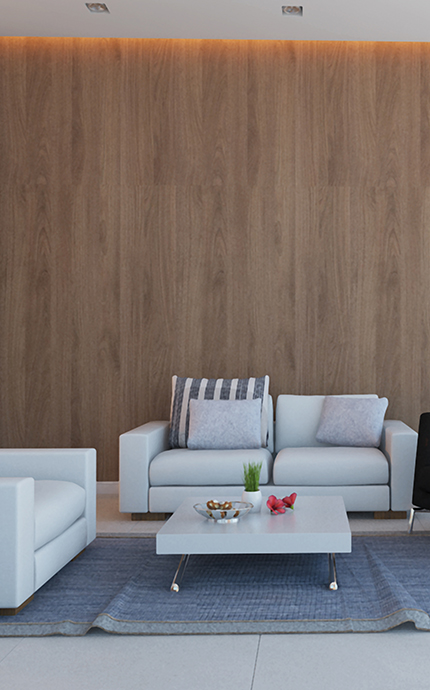

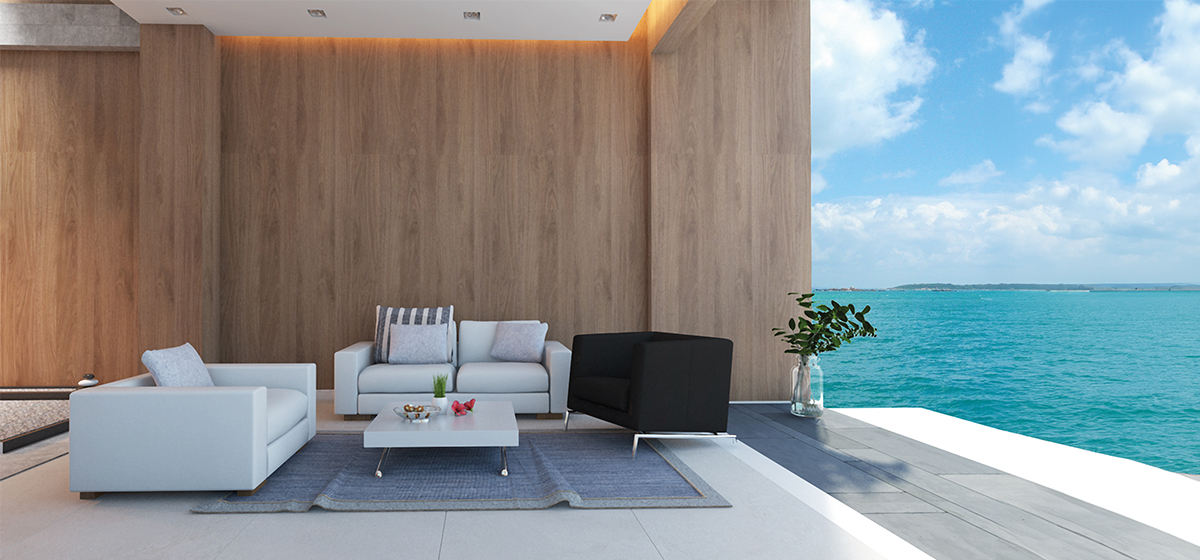

Sapphire plywood for living room - MikasaPly Sapphire plywood for living room - MikasaPly

A GAME CHANGER
TO RESHAPE
THE PLYWOOD INDUSTRY

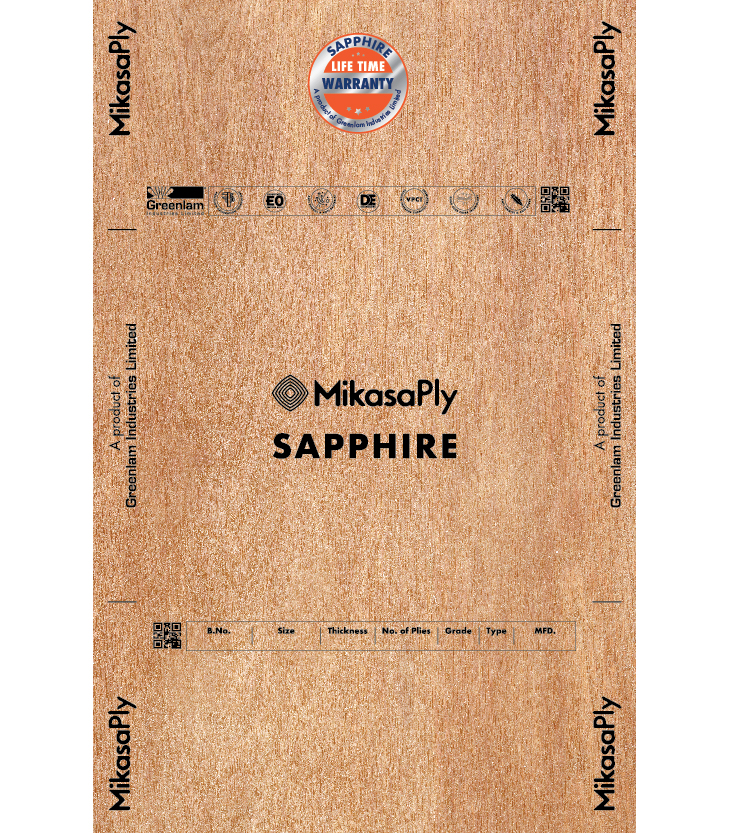

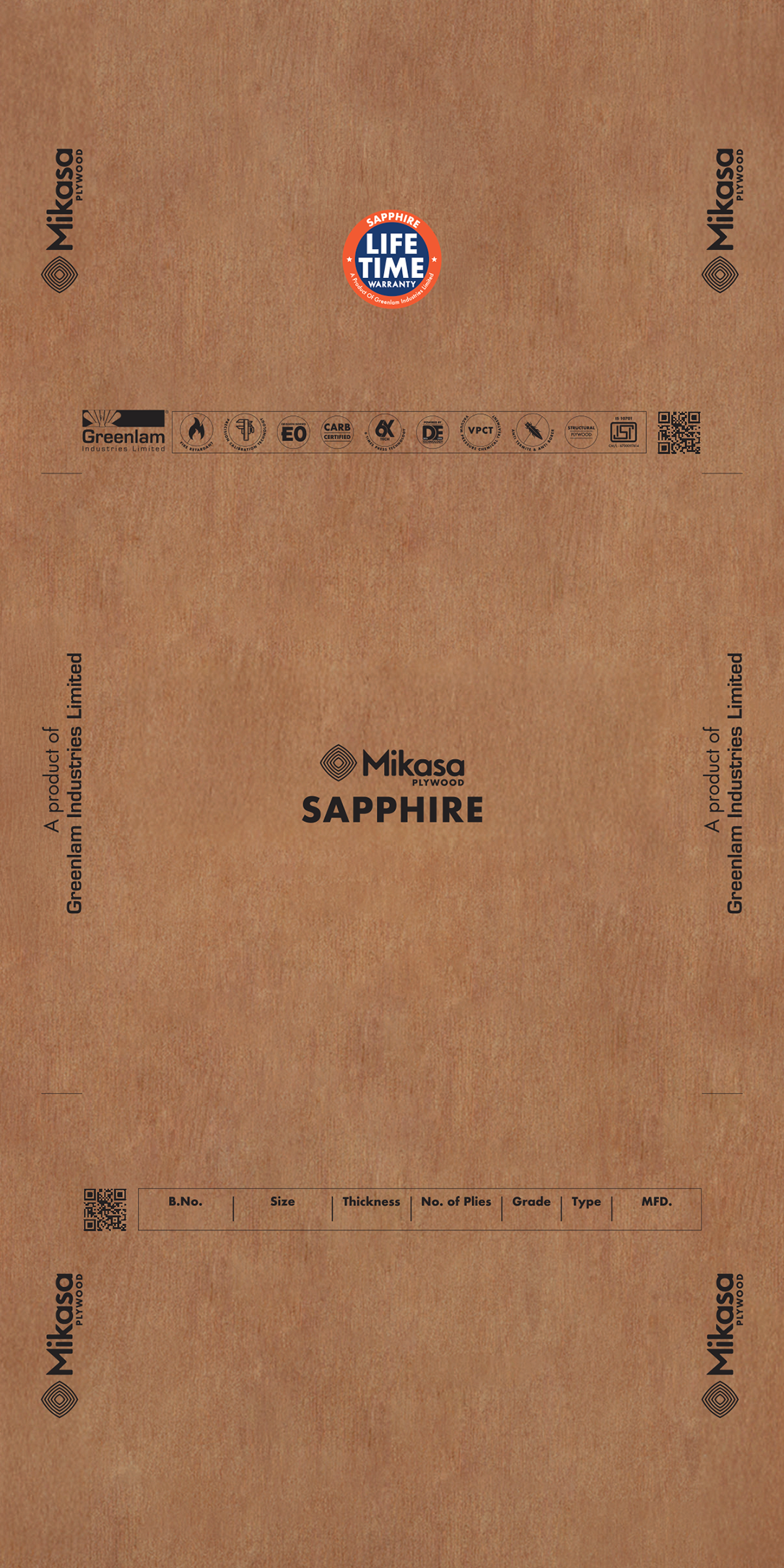

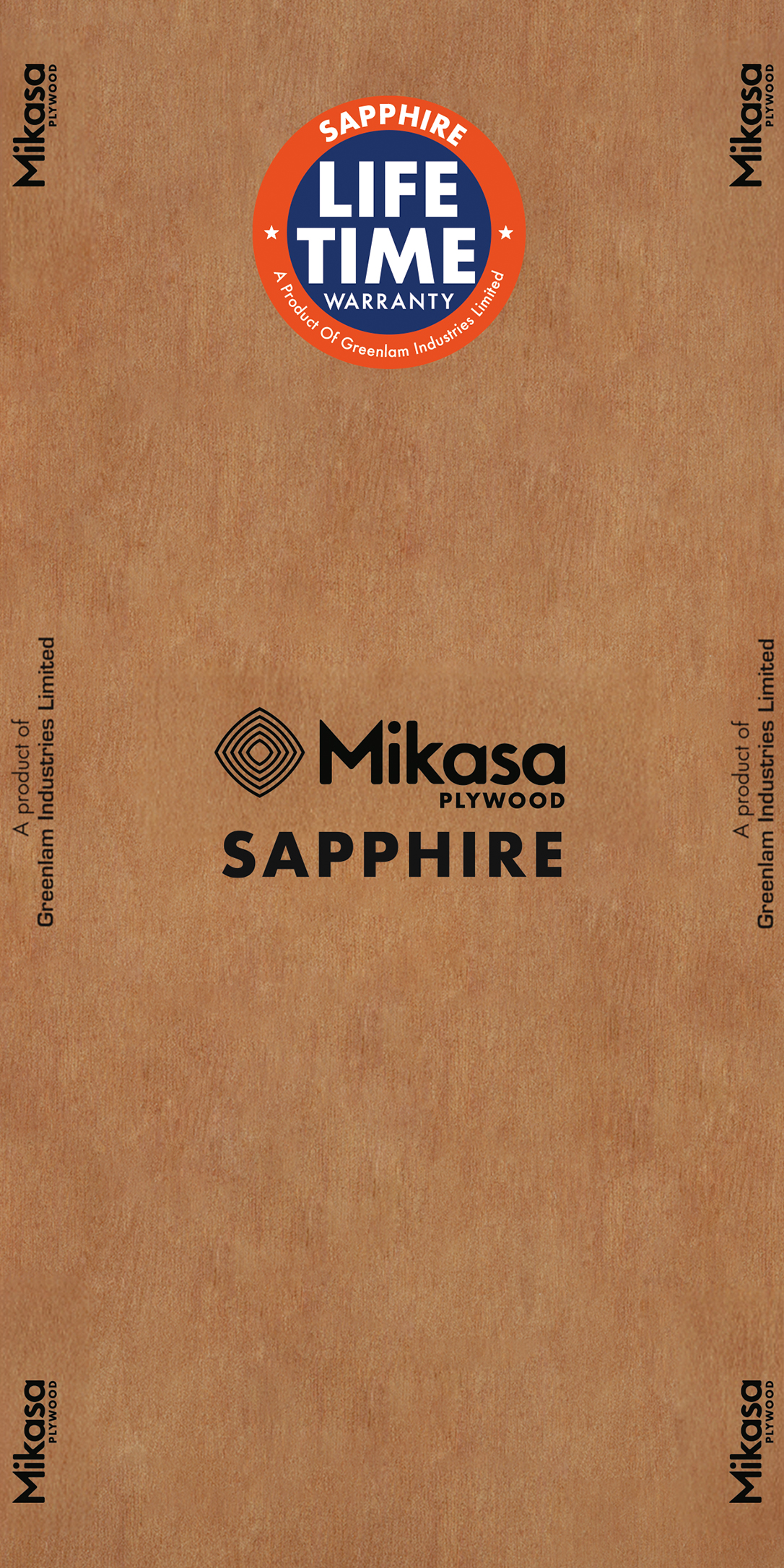

Sapphire Ply Board by MikasaPly

SAPPHIRE

Sapphire is a superior-grade plywood composed of premium hardwood with 0.6mm face veneer thickness on each side. It is manufactured using E0 certified resin, ensuring that it has zero emissions, making it an eco-friendly option. This high-strength product is molded from 100% composed veneer ensuring optimal quality. Sapphire is fire-retardant, providing safety against fire hazards. It is vacuum-pressed and chemically treated, making it resistant to fungus, bacteria, borer, and termite. With a lifetime warranty, Sapphire is the ultimate choice for those who demand nothing but the finest quality in their plywood products.

SAPPHIRESAPPHIRE
The Power of Deca Edge Technology The Power of Deca Edge Technology

The Power of
Deca Edge Technology

MikasaPly takes precision to the next level with its meticulously calibrated plywood, made possible by the innovative Deca Edge Technology. This cutting-edge innovation guarantees superior quality with minimal emission and a smooth finish. The added fungicide treatment ensures a flawless surface, making every MikasaPly product a reliable and high-performing choice. This technology is used across the entire range of MikasaPly.

Technical Specification

Sapphire Plywood - MikasaPly
  • Quad-Core Press Yes
  • 100% Composed Veneer All layers are pre-composed in an automatic state-of-the-art machine
  • Adhesives of Plies
  • Glue Shear Strength (N) = 1755
  • Visual Inspection Excellent
  • Moisture Content (%) 8-12
  • Water Absorption (%) < 5
  • Static Bending Strength (N/mm2)
  • Modulus of Rupture (MOR):
  • Along the grain = 60
  • Across the grain = 45
  • Modulus of Elasticity (MOE):
  • Along the grain = 9000
  • Across the grain = 5200
  • Adhesive Phenolic adhesive
  • Calibration 100% as per Precision Calibration Technology
  • Thickness in mm Number of Plies
  • 4mm 5
  • 6mm 7
  • 9mm 9
  • 12mm 11
  • 16mm 13
  • 19mm 15
  • 25mm 17
  • Face Veneer 0.6MM thick premium hardwood face
  • Fire Retardant Yes
  • Emission Norms Bonded with EO certified resin
  • Veneer Treatment Each veneer is treated with preservative before pressing through Vacuum Pressure Technology
  • Density approx in kg per CBM 730
  • Nail holding Strength (kg) = 150
  • Screw Holding Strength (kg) = 275
  • Impact Resistance Excellent strength and dimensional stability due to higher number of plies



  • decaedgetechnology

    VPCT:

    Vacuum Pressure Chemical Treatment
  • decaedgetechnology

    CMD:

    Conditioning through Mechanized Drying
  • decaedgetechnology

    MCG:

    Mechanized Core Composers
  • decaedgetechnology

    MTST:

    Modified Triple-Stage Technology
  • decaedgetechnology

    ATAB:

    An-Termite & Anti-Borer
  • decaedgetechnology

    QCPT:

    QuadCore Press Technology
  • decaedgetechnology

    PCT:

    Precision Calibration Technology
  • decaedgetechnology

    HIRT:

    High-Impact Resistant Technology
  • decaedgetechnology

    AFAB:

    Anti-Fungal & Anti-Bacterial
  • decaedgetechnology

    HTS:

    High-Tensile Strength
